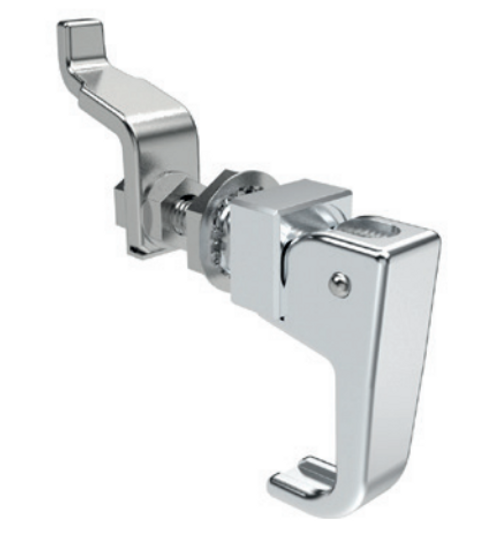

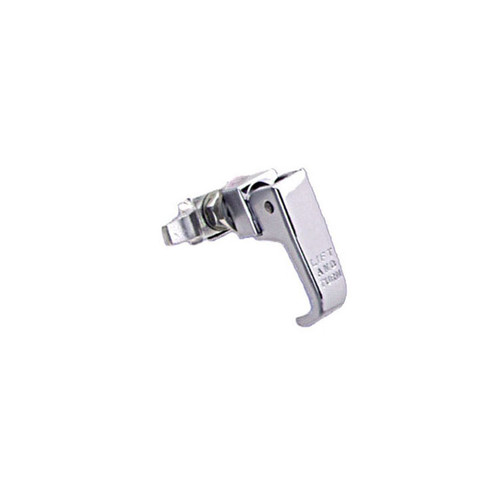

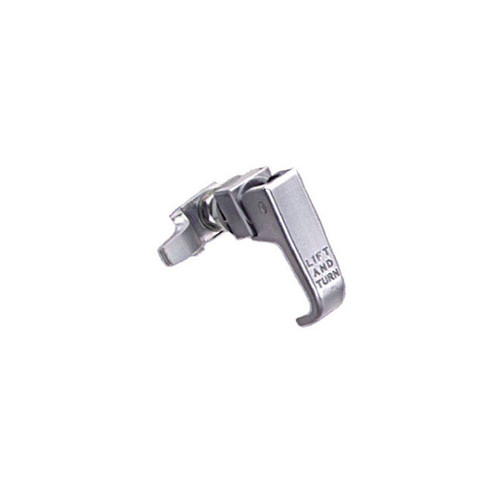

Enhance a variety of enclosure designs with quick and easy access by using the multiple advantages of these practical, stylish latches. They provide precise pull-up compression without rubbing or wear on the pawl, and are available in a variety of finishes to complement virtually any installation. Dual function - compression latch and door handle - in one assembly. Easy to install and easy to operate. Simply lift the handle to release the compression, and turn it to rotate the pawl out from behind the frame..
- Weight:
- 0.2500 LBS
- Color:
- Natural
- Show Options Price Differential:
- Female
- Pack Size:
- Each
- UOM:
- EA
- Product Type:
- Compression Latch
- Material:
- Zinc Alloy
- Finish:
- Chemical Protective Film
- Lock-In / Lock-Out:
- No
- Grease Fitting:
- No
- Operation:
- Hand Operated
- Size Series:
- Small Size
- Color/Appearance:
- Natural
- Door Thickness Range:
- 6.000 mm
- Gasketed:
- No
- Grip Range:
- 22.000-32.000 mm
- Group:
- Lift & Turn Latches
- Access Restriction:
- No Restriction
- Latch Assembled:
- No
