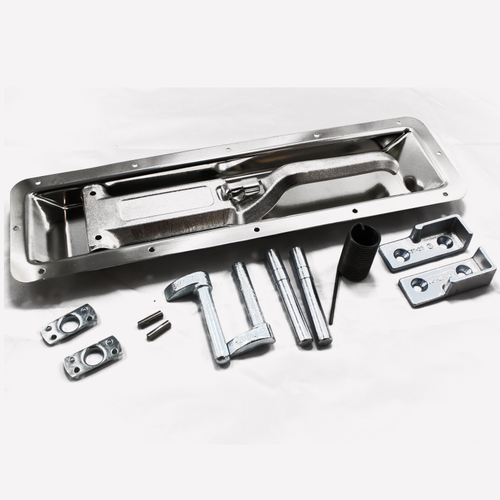

Cam-Type Door Lock - Assembly kit includes receptacle, cams, keepers, and fastener package. Zinc Finish. Designed for thin door installations, this cam type side door lock permits building the vehicle to the greatest legal width for maximum cargo space. A

Part Number#:

EMC 5663 ZN

Out of stock

$169.77
Overview
LK.PKG.-THIN DOOR W/WATER SEAL
Cam-Type Door Lock - Assembly kit includes receptacle, cams, keepers, and fastener package. Zinc Finish. Designed for thin door installations, this cam type side door lock permits building the vehicle to the greatest legal width for maximum cargo space. A standard water seal system using O-rings and bushings is provided to prevent water leakage at the handle pivot point. Handle has thumb trigger release with holes for padlock and seal. Forged steel cams and keepers. Designed for 1/2 in. standard pipe (not furnished)
More Information
Catalog Link Click Here
Weight (lbs) 5.920000
Pack Size Each
UOM EA
Brand Eberhard
Material Steel
Finish Zinc Plated
Grease Fitting No
Operation Lever Operated
Latching Points Two Point
Size Medium
