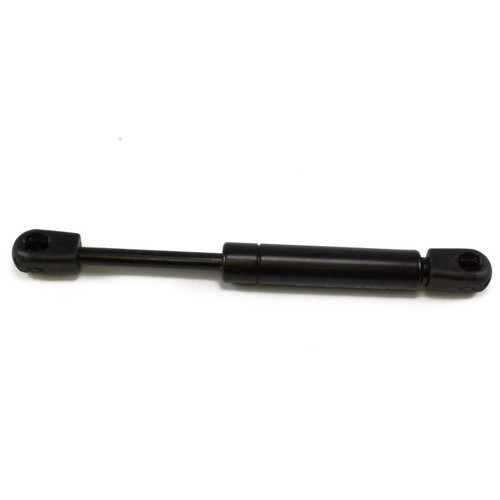

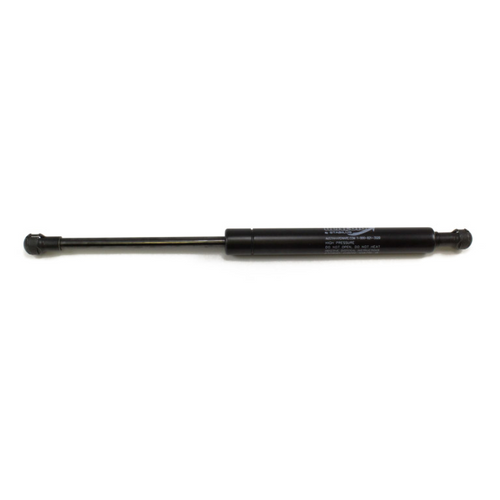

Gas Spring, 8x19, 500mm extended length, 211mm stroke, 470 N, MD10 metal ends
The Genesis line of gas springs has been created to cover the industry's wide range of size and force requirements. These include the very compact low force springs in the 6 x 15 range to the largest force requirement in the 14 x 28 configurations. Austin guarantees the performance of Genesis Gas Springs for up to 5 Years when Austin has provided direct application assistance. View the rest of our Genesis Gas Spring line.
- Weight:
- 0.6669 LBS
- Pack Size:
- Each
- UOM:
- EA
- Connector Size:
- 10mm
- Tube Dia. (mm):
- 19
- Extended Length:
- 500 mm
- Stroke:
- 211 mm
- Force:
- 470 N
- Connector Type:
- MD10 metal ends
- Rod Dia. (mm):
- 8
