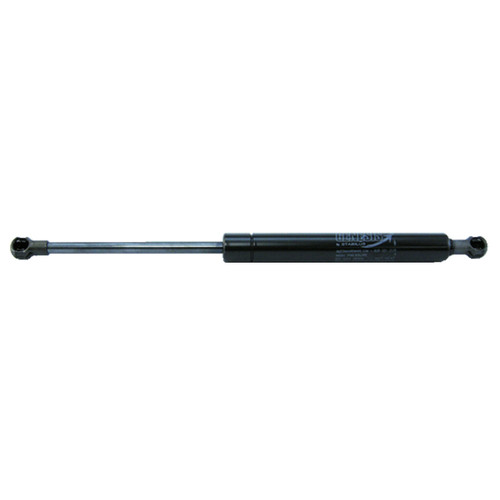

Genesis Gas Spring - 17.205" Extended 153 lbs. Force

Part Number#:

GSS 6377UR

Out of stock

$44.65
Overview

-Genesis Gas Spring
-.315" Rod x .748" Tube (8mm x 19mm)
-6.75" Stroke
-10mm Metal Ends
-153 lbs. Force
-17.205" Extended Length

The Genesis line of gas springs has been created to cover the industry's wide range of size and force requirements. These include the very compact low force springs in the 6 x 15 range to the largest force requirement in the 14 x 28 configurations. Austin guarantees the performance of Genesis Gas Springs for up to 5 Years when Austin has provided direct application assistance. View the rest of our Genesis Gas Spring line.

More Information
3D Cad Model Click To Download
Weight (lbs) 0.610000
Pack Size Each
UOM EA
Tube Size 19mm
Size MM 8x19
Marketing P/N GS08-0675MD10-153
Size Inch .315" x .748"
Connector Material Metal
Connector Size 10mm
Force lbf 153
Stroke 7.08"
Extended Length 17.2"
Brand Genesis
Grease Fitting No
Shaft Size 8mm
Connector Type Metal
