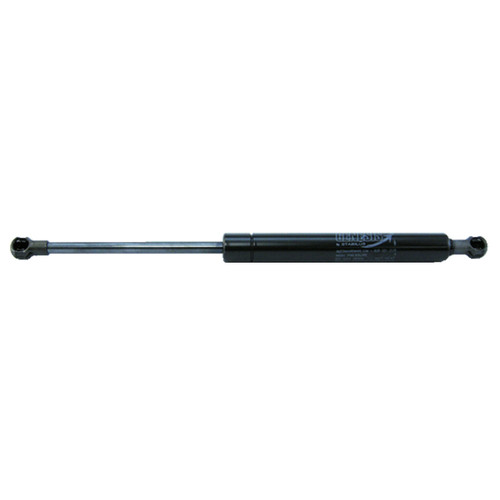

Genesis Gas Spring - 17.205" Extended 121 lbs. Force

Part Number#:

GSS 6376UW

In stock

$44.65
-
+
Overview

-Genesis Gas Spring
-.315" Rod x .748" Tube (8mm x 19mm)
-6.75" Stroke
-10mm Metal Ends
-121 lbs. Force
-17.205" Extended Length

The Genesis line of gas springs has been created to cover the industry's wide range of size and force requirements. These include the very compact low force springs in the 6 x 15 range to the largest force requirement in the 14 x 28 configurations. Austin guarantees the performance of Genesis Gas Springs for up to 5 Years when Austin has provided direct application assistance. View the rest of our Genesis Gas Spring line.

More Information
3D Cad Model Click To Download
Weight (lbs) 0.590000
Pack Size Each
UOM EA
Size MM 8x19
Marketing P/N GS08-0675MD10-121
Size Inch .315" x .748"
Connector Material Metal
Connector Size 10mm
Force lbf 121
Stroke 6.75
Extended Length 17.205
Brand Genesis
Grease Fitting No
