Genesis Part# GSS 6554UD

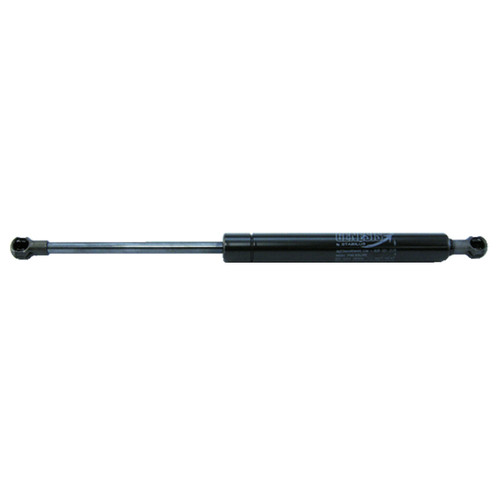

Genesis Gas Spring - 12.087" Extended 20 lbs. Force - 1

$39.8000

Genesis Gas Spring, 8x19mm, 12.087 ext. length, 4.25" stroke, 20 lbf., 10mm metal ends. Genesis gas springs cover a wide range of size and force requirements. Guaranteed performance up to 5 years when Austin provides direct application assistance."

Read All Details
Adding to cart… The item has been added
?

Special ordering requirements apply to this item. Request a quote to proceed.

Add to Quote
Add to List

The Genesis line of gas springs has been created to cover the industry's wide range of size and force requirements. These include the very compact low force springs in the 6 x 15 range to the largest force requirement in the 14 x 28 configurations. Austin guarantees the performance of Genesis Gas Springs for up to 5 Years when Austin has provided direct application assistance. View the rest of our Genesis Gas Spring line.

Weight:
0.4500 LBS
3D Cad Model:
Click To Download
Show Options Price Differential:
Female
Pack Size:
Each
UOM:
EA
Size MM:
8x19
Size Inch:
.315" x .748"
Connector Material:
Metal
Connector Size:
10mm
Force lbf:
20
Over Travel:
0.238
Stroke:
4.25
Extended Length:
12.087
Lock-In / Lock-Out:
No
Grease Fitting:
No
