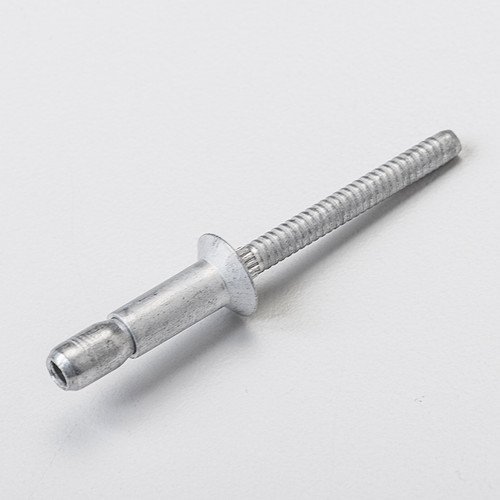

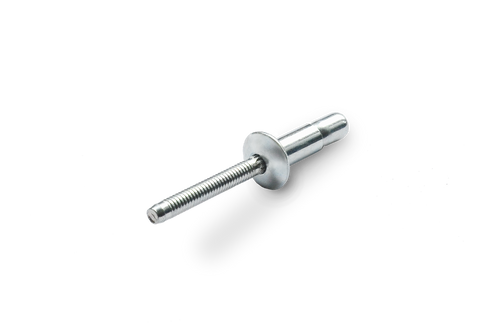

3/16 DIA HUCK MAGNA-LOK ALUM
Magna-Lok® The World’s Most Reliable Blind Fastening System The 360º solid-circle lock. It’s Arconic Fastening System and Rings’ answer to loosening and vibration challenges. And it’s the reason Magna-Lok® is the world’s most reliable, most consistent blind fastening solution available. The unique locking design creates an internal lock during installation that virtually eliminates pin push-out by mechanically locking the pin to the sleeve. So Magna-Lok fasteners lock flush into place reliably. Permanently. In lap shear fatigue tests, steel Magna-Lok fasteners outlasted the nearest competitor nearly 20 to 1. Ours lasted 2 million cycles, while theirs lasted only 100,000. In addition, this strength extends to the solid-circle lock design. The expanding sleeve creates a tough, long-lasting joint with a tight, weather-resistant seal. This shield blocks out water and salt, further ensuring the fastener’s long, reliable life.
- Weight:
- 0.0033 LBS
- Additional Product Info:
- Click Here
- Show Options Price Differential:
- Female
- Pack Size:
- Each
- UOM:
- EA
- Material:
- Aluminum
- Product Line:
- Magna-Lok®
- Lock-In / Lock-Out:
- No
- Grease Fitting:
- No
- Grip Range:
- .125 - .331
- Head Style:
- 100° countersunk
- Tensile lbs:
- 500
- Sheer lbs:
- 600
- Rivet Diameter:
- 3/16"
