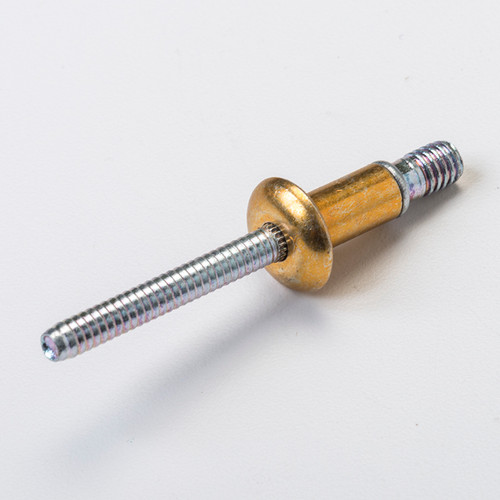

Huck Magna-Bulb Blind Rivet, 3/16" Diameter, .205-.268" Grip, Dome Head, Steel Body with Zinc Gold Dye, Steel Mandrel with Zinc Clear Trivalent
The Huck Magna-Bulb® is a unique, clamp-type fastener offering high shear strength in specific applications. Its bulbing action during installation spreads the load over more surface area, supplying a stronger, longer-lasting connection. This increased bearing area makes Magna-Bulb ideal for pull-out resistance in thin materials, and oversized or misaligned holes. Unique bulbling system for superior blind side strength. Positive, mechanical pin-retention ensures structural integrity. Offers high shear strength in specific applications Ideal for high pull-out strength in thin materials, and oversized or misaligned holes
- Weight:
- 0.0100 LBS
- Pack Size:
- Each
- UOM:
- EA
- Product Type:
- Structural Blind Rivet
- Material:
- Steel, Zinc Plated
- Product Line:
- Magna-bulb®
- Lock-In / Lock-Out:
- No
- Grip Range:
- .205 - .268
- Head Style:
- Protruding
- Tensile lbs:
- 1100
- Sheer lbs:
- 1700
- Rivet Diameter:
- 3/16"
