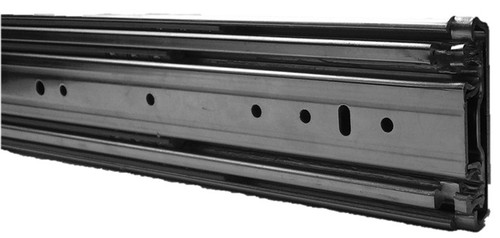

For fire, rescue, and emergency vehicles, cargo vans, maintenance trucks and utility vehicles we offer high quality steel, aluminum, and stainless steel drawer slides in various lengths, load requirements and desired reach. 500 lb. class extra heavy-duty full extension drawer slide with sizes up to 60" long supports a range of specialty commercial, industrial and vehicular applications. Features an unhanded, non-disconnect design. Recommended for drawers up to 48" wide. (Actual load and width rating are dependent on application.
height: 3 in., non-metalic open and close stops assure silent operation, hat channel profile provides extra clearance for mounting hardware.
|Catalog Link||Click Here|
|Slide Length (mm)||457.2|
|Slide Length (IN)||18|
|Travel Length (IN)||18|
|Travel Length (mm)||457.2|
|Load Capacity (lbs./pair)||500|
|Slide Type||Extra Heavy Duty|
