In stock

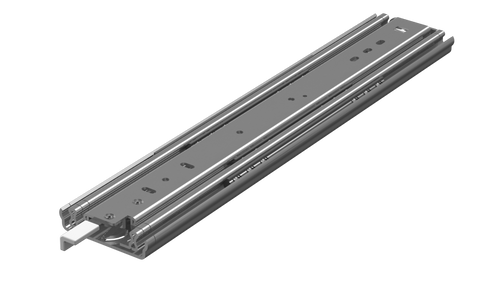

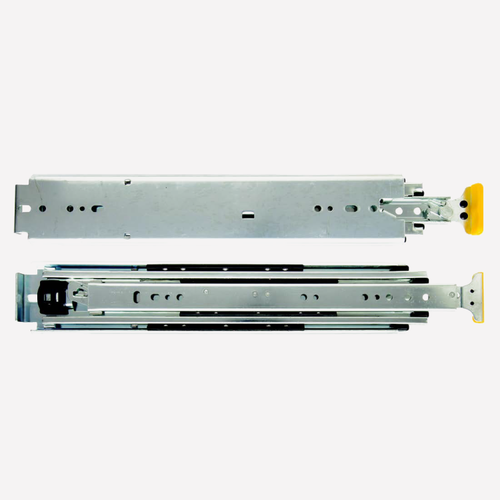

- 12" Extra Heavy Duty uni-directional Drawer Slide (304.8 mm)
- 500 lbs./pair capacity
- Automatic lock-in/lock-out feature
- Intuitive uni-directional release/closure
- Removable, ergonomic handle
- Spring-activated latches for vertical and horizontal mounting
- Non-disconnect
For fire, rescue, and emergency vehicles, cargo vans, maintenance trucks and utility vehicles we offer high quality steel, aluminum, and stainless steel drawer slides in various lengths, load requirements and desired reach. 500 lb. lock-in/lock-out full extension drawer slide features an ergonomic uni-directional release/closure and removable handle. Features spring-activated latches for vertical and horizontal mounting and an unhanded design. (Load and drawer width rating dependent on the application.)
Extra heavy duty drawer slides, height: 3 in.
| Catalog Link | Click Here |
|---|---|
| Weight (lbs) | 3.360000 |
| Pack Size | Each |
| UOM | EA |
| Slide Length (IN) | 12 |
| Slide Length (mm) | 304.8 |
| Travel Length (IN) | 12 |
| Travel Length (mm) | 304.8 |
| Load Capacity (lbs./pair) | 500 |
| Slide Type | Extra Heavy Duty |
| Grease Fitting | No |
