Squad Bench Latch by Austin Hardware

Our new, patent-pending Squad Bench Latch for ambulances and emergency vehicles is easy to install with no cutouts required in the bench or lid. Most importantly it allows for one-handed operation.

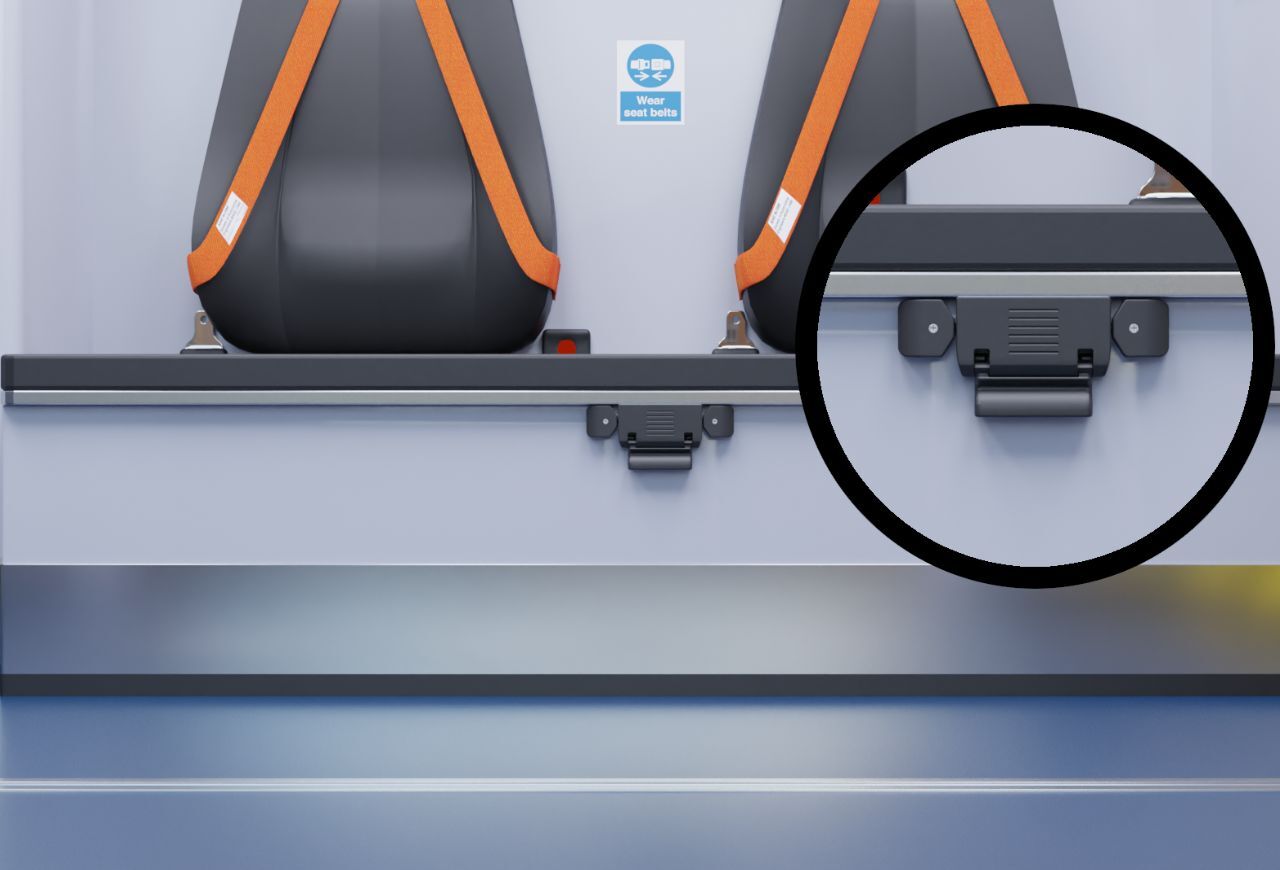

Squad Bench Latch With Close Up

Introducing the Patent-Pending Squad Bench Latch (SBL) – An Austin Engineered Solution

Austin Hardware® is proud to introduce the Squad Bench Latch (SBL)—a patent-pending innovation designed specifically for ambulances and emergency vehicles. Built with both safety and convenience in mind, this cutting-edge latch offers a seamless solution for securing squad benches while ensuring quick and effortless access when needed.

Key Benefits & Features

  • Easy Installation – No cutouts required on the bench or lid.
  • No Internal Components – No linkages or strikers inside the compartment, preventing contents from jamming the latch.
  • Fast & Simple Setup – Installs in less than 5 minutes using a drill jig.
  • Retrofit Capable – Can be easily integrated into existing setups.
  • One-Handed Operation – Latching and lifting motions are perfectly aligned for effortless use.
  • Double Rod Locking Mechanism – Secures in X, Y, and Z directions for maximum stability.
  • Patent Pending – Designed by Austin Hardware®, with a U.S. patent currently pending.
Squad Bench Latch Open View Close Up
Squad Bench Latch Open View
Squad Bench Latch Close Up
Slam Latch Technical Drawing

Slam Latch System: Features & Specifications

The SBL-KIT is a durable and reliable slam latch system designed to keep squad bench lids securely closed in ambulances. Engineered with high-quality materials and compliant with SAE J3058 standards, this latch ensures safety, strength, and long-lasting performance in emergency medical vehicles.

Technical Specifications

  • Part Number: SBL-KIT
  • Materials: Black Polyamide Nylon 6/6, Carbon Steel, Spring Steel, Acetal
  • Weight: 0.71 lbs
  • Compliance: SAE J3058
  • Optional Mounting Jig (SBL-JIG): Assists with precise installation by positioning and drilling necessary holes.
    • Drill Bits: .1495" and .250"
    • Countersink: 82°

More EMS Solutions From Austin Hardware

Austin Hardware® is a leading supplier to essential, life-saving industries. We provide critical care products for EMS personnel in ambulances, fire trucks, and emergency vehicles. Our engineering team works hard to provide top-of-the-line products that save lives. The average EMS response time is less than 20 minutes, and each minute during an emergency response is crucial for patient care.

Resources

Discover these resources for the Squad Bench Latch & EMS Industries.
